UKINOX ALMOND SERIES
Contemporary Double Bowl Sinks R10
33-1/2″ 1-3/4 BOWL
UK RS 420 60 40
UK RS 420 60 40 R (Reverse Model)
TECHNICAL DETAILS
| Sink Dimensions | L: 33-1/2″ W: 20-1/2” L: 14″ W: 17-1/2″ |
|
| Bowl Dimensions |
L: 16-3/4″ W: 18-1/2″ L: 14″ W: 15-1/2″ |
|
| Minimum Cabinet Size | 36″ | |
| Bowl Depth | 10″ – 8″ | |
| Thickness | 16 gauge | |
| Finish | Soft Satin Finish | |
| Shipping Weight | 40 lbs’ |
GENERAL FEATURES
Fine quality sink bowls formed of 16 gauge BA 304
18/10 nickel bearing stainless steel.
DESIGN FEATURES
Bowl Depth: 10″ Large Bowl – 8″ Small Bowl
R10 (3/8”) Radius Corners)
Finish: Soft Satin Finish
Underside: Sound absorbing pads and special paint
applied to dampen sound
Drain Opening: 3-1/2″ – 3-1/2″

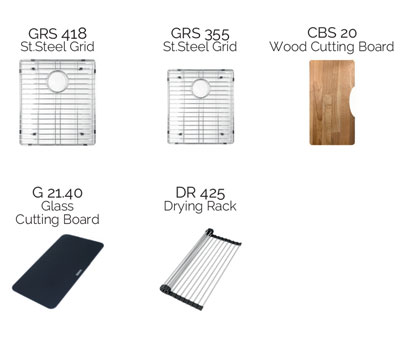

OPTIONAL ACCESSORIES

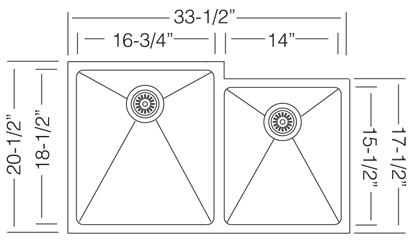

TECHNICAL DRAWINGS
INSTALLATION PROFILE DRAWINGS
