UKINOX BAR / PREP SINKS SERIES

8-1/4” PREP BOWL

UK D 181

TECHNICAL DETAILS

Sink Dimensions L: 15-1/8″ W: 8-1/4
Bowl Dimensions
L: 14-1/8″ W: 7-1/8″
Minimum Cabinet Size  12″
Bowl Depth 6″
Thickness 18 gauge
Finish Soft Satin Finish
Shipping Weight 8 lbs’

GENERAL FEATURES
Fine quality sink bowl formed of 18 gauge BA 304
18/10 nickel bearing stainless steel.

DESIGN FEATURES
Bowl Depth: 6″
Finish: Soft Satin Finish
Underside: Sound absorbing pads and special paint applied to dampen sound
Drain Opening: 3-1/2″

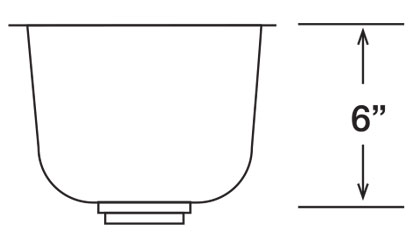

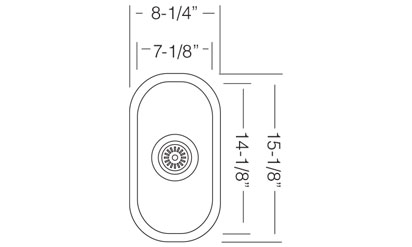

SINK DIMENSIONS (INCHES)

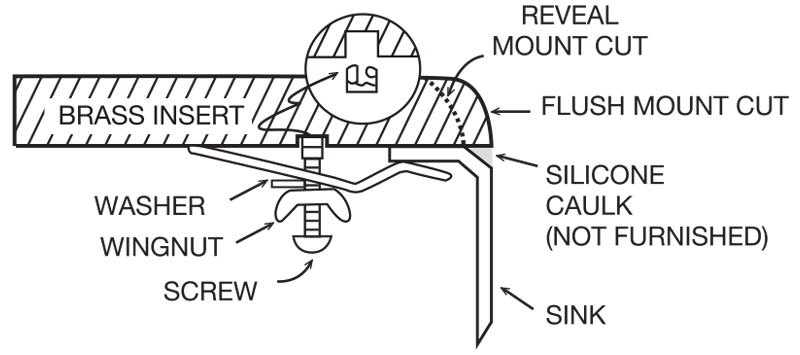

INSTALLATION PROFILE*

* Template and countertop mounting clips are packed with every sink
