UKINOX BAR / PREP SINKS SERIES

9-1/2” PREP BOWL

UK D 210

TECHNICAL DETAILS

Sink Dimensions L: 17″ W: 9-1/2
Bowl Dimensions
L: 15-5/8″ W: 8-1/4″
Minimum Cabinet Size  12″
Bowl Depth 7″
Thickness 18 gauge
Finish Soft Satin Finish
Shipping Weight 8 lbs’

GENERAL FEATURES
Fine quality sink bowl formed of 18 gauge BA 304
18/10 nickel bearing stainless steel.

DESIGN FEATURES
Bowl Depth: 7″
Finish: Soft Satin Finish
Underside: Sound absorbing pads and special paint applied to dampen sound
Drain Opening: 3-1/2″

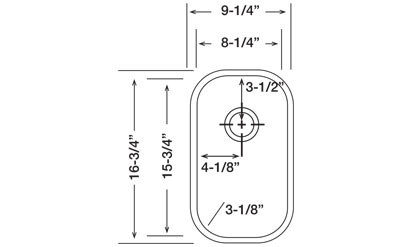

SINK DIMENSIONS (INCHES)

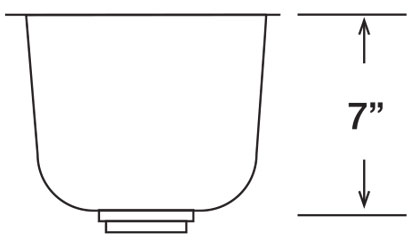

INSTALLATION PROFILE*

* Template and countertop mounting clips are packed with every sink

SPECIFICATION SHEETS
