UKINOX DIAMOND SERIES
Classic Large Double Bowl
36″ LARGE 1-3/4 BOWL
D 537 60 40
D 537 60 40 R (Reverse Model)
TECHNICAL DETAILS
| Sink Dimensions | L: 38″ – W: 20–3/4″– 17-3/4″ | |
| Bowl Dimensions |
L: 21-1/8″ – 13-1/2″ W: 18-3/4″ – 15-3/4″ |
|
| Minimum Cabinet Size | 42″ | |
| Bowl Depth | 10″-7″ | |
| Thickness | 16 gauge | |
| Finish | Soft Satin Finish | |
| Shipping Weight | 36 lbs’ |
GENERAL FEATURES
Fine quality sink bowls formed of 16 gauge BA 304
18/10 nickel bearing stainless steel.
DESIGN FEATURES
Bowl Depth: 10″-7″
R10 (3/8”) Radius Corners)
Finish: Soft Satin Finish
Underside: Sound absorbing pads and special paint
applied to dampen sound
Drain Opening: 3-1/2″

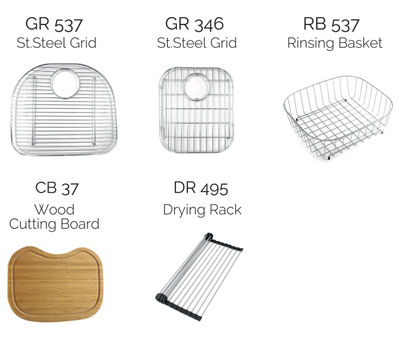

OPTIONAL ACCESSORIES

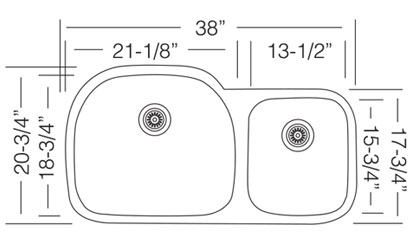

TECHNICAL DRAWINGS
INSTALLATION PROFILE DRAWINGS
