UKINOX FLORA WORKSTATION SERIES
Contemporary Single Bowl Galley Design R0
24-1/2″ SINGLE BOWL LEDGE SINK
UK DSL 620
TECHNICAL DETAILS
| Sink Dimensions | L: 24-1/2″ W: 19″ | |
| Bowl Dimensions |
L: 22-1/2″ W: 15-3/4″ |
|
| Minimum Cabinet Size | 27″ | |
| Bowl Depth | 10″ | |
| Thickness | 16 gauge | |
| Finish | Soft Satin Finish | |
| Shipping Weight | 30 lbs’ |
GENERAL FEATURES
Fine quality sink bowls formed of 16 gauge BA 304
18/10 nickel bearing stainless steel.
DESIGN FEATURES
Bowl Depth: 10″
R0 Zero Radius Corners
Finish: Soft Satin Finish
Underside: Sound absorbing pads and special paint
applied to dampen sound
Drain Opening: 3-1/2″

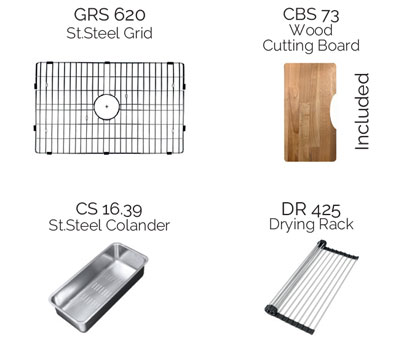

OPTIONAL ACCESSORIES

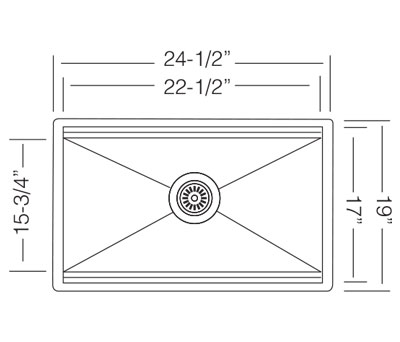

TECHNICAL DRAWINGS
INSTALLATION PROFILE DRAWINGS
