UK D 360 50 50

UKINOX LIME SERIES
Classic Double Bowl Sinks

32″ EQUAL BOWL

UK D 360 50 50

TECHNICAL DETAILS

Sink Dimensions L: 32-1/4″ W: 18-7/8″
Bowl Dimensions
L: 14-1/4″ – 14-1/4″
W: 16-1/2″ –
16-1/2″
Minimum Cabinet Size  36″
Bowl Depth 9″
Thickness 18 gauge
Finish Soft Satin Finish
Shipping Weight 30 lbs’

GENERAL FEATURES
Fine quality sink bowls formed of 18 gauge BA 304
18/10 nickel bearing stainless steel.

DESIGN FEATURES
Bowl Depth: 9″
R10 (3/8”) Radius Corners)
Finish: Soft Satin Finish
Underside: Sound absorbing pads and special paint
applied to dampen sound
Drain Opening: 3-1/2″

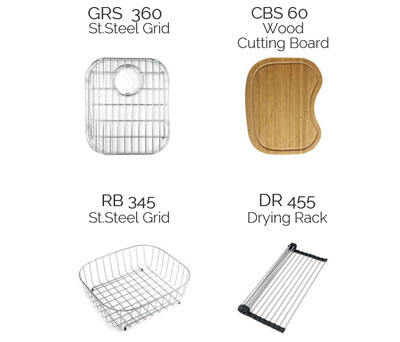

OPTIONAL ACCESSORIES

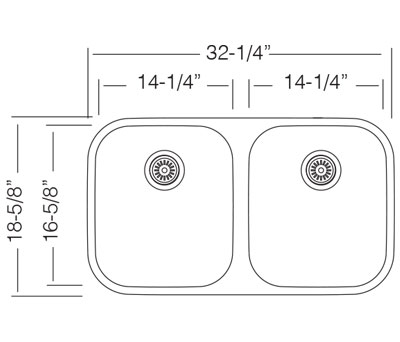

TECHNICAL DRAWINGS

INSTALLATION PROFILE DRAWINGS
