UKINOX BAR / PREP SINKS SERIES
Modern Single Bowl
15″ BAR SINK
UK R 340
TECHNICAL DETAILS
| Sink Dimensions | L: 15″ W: 17-3/8″ | |
| Bowl Dimensions |
L: 13-3/8″ W: 15-3/4″ |
|
| Minimum Cabinet Size | 18″ | |
| Bowl Depth | 9″ | |
| Thickness | 18 gauge | |
| Finish | Soft Satin Finish | |
| Shipping Weight | 15 lbs’ |
GENERAL FEATURES
Fine quality sink bowls formed of 18 gauge BA 304
18/10 nickel bearing stainless steel.
DESIGN FEATURES
Bowl Depth: 9″
Finish: Soft Satin Finish
Underside: Sound absorbing pads and special paint
applied to dampen sound
Drain Opening: 3-1/2″
OPTIONAL ACCESSORIES

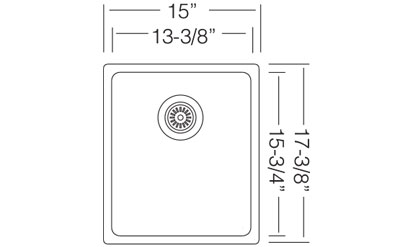

TECHNICAL DRAWINGS

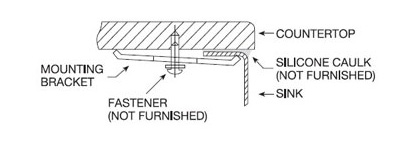

INSTALLATION PROFILE DRAWINGS
