UKINOX ROSE SERIES
Modern Large Single Bowl R20
17″ SINGLE BOWL
UK R 400
TECHNICAL DETAILS
| Sink Dimensions | L: 17-3/4″ W: 19-3/4″ | |
| Bowl Dimensions |
L: 15-3/4″ W: 17-3/4″ |
|
| Minimum Cabinet Size | 21″ | |
| Bowl Depth | 9″ | |
| Thickness | 18 gauge | |
| Finish | Soft Satin Finish | |
| Shipping Weight | 20 lbs’ |
GENERAL FEATURES
Fine quality sink bowls formed of 18 gauge BA 304
18/10 nickel bearing stainless steel.
DESIGN FEATURES
Bowl Depth: 9″
Finish: Soft Satin Finish
Underside: Sound absorbing pads and special paint
applied to dampen sound
Drain Opening: 3-1/2″

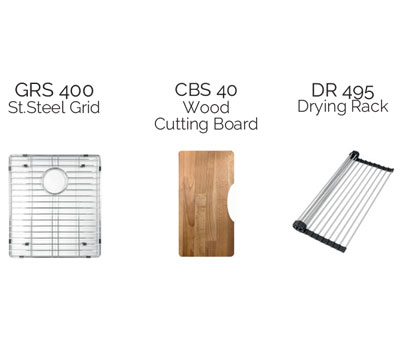

OPTIONAL ACCESSORIES

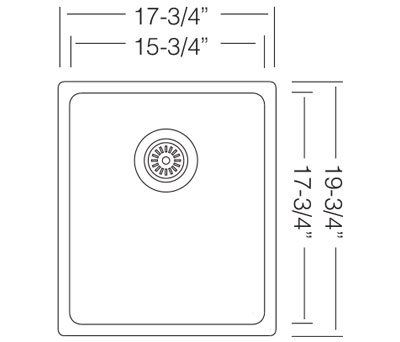

TECHNICAL DRAWINGS
INSTALLATION PROFILE DRAWINGS
