UKINOX ROSE SERIES
Modern Large Single Bowl R20

31″ LARGE SINGLE BOWL

UK R 745

TECHNICAL DETAILS

Sink Dimensions L: 31″ W: 17-5/8″
Bowl Dimensions
L: 29-1/4″ W: 15-5/8″
Minimum Cabinet Size  36″
Bowl Depth 9″
Thickness 18 gauge
Finish Soft Satin Finish
Shipping Weight 25 lbs’

GENERAL FEATURES
Fine quality sink bowls formed of 18 gauge BA 304
18/10 nickel bearing stainless steel.

DESIGN FEATURES
Bowl Depth: 9″
Finish: Soft Satin Finish
Underside: Sound absorbing pads and special paint
applied to dampen sound
Drain Opening: 3-1/2″

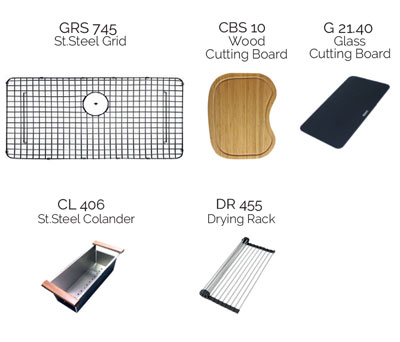

OPTIONAL ACCESSORIES

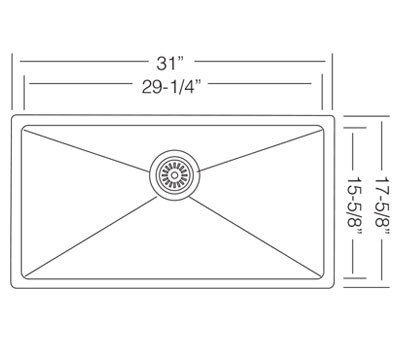

TECHNICAL DRAWINGS

INSTALLATION PROFILE DRAWINGS
