UKINOX UTILITY SERIES
Stainless Steel Utility Sinks
24″ x 18″ x 10″ deep UTILITY SINK
DROP IN OR UNDERMOUNT INSTALLATION
UK DL 610
TECHNICAL DETAILS
| Sink Dimensions | L: 24″ x W: 18″ | |
| Minimum Cabinet Size | 27″ | |
| Bowl Depth | 10″ | |
| Thickness | 18 gauge | |
| Finish | Soft Satin Finish | |
| Shipping Weight | 20 lbs’ |
GENERAL FEATURES
Fine quality sink bowls formed of 18 gauge BA 304
18/10 nickel bearing stainless steel.
DESIGN FEATURES
Bowl Depth: 10″
Corner Radius: Overall R20 (3/4″)
Finish: Soft Satin Finish
Underside: Sound absorbing pads and special paint
applied to dampen sound
Drain Opening: 3-1/2″
OPTIONAL ACCESSORIES

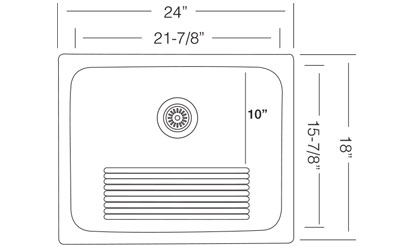

TECHNICAL DRAWINGS
INSTALLATION PROFILE DRAWINGS
