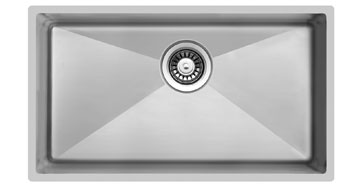

UK RS 764 (NEW)
UKINOX AMBER SERIES
Contemporary Large Single Bowl Sinks
30” LARGE SINGLE BOWL
UK RS 764 (NEW)
TECHNICAL DETAILS
| Sink Dimensions | L: 30″ W: 19“ | |
| Bowl Dimensions | L: 28″ W: 17″ | |
| Minimum Cabinet Size | 33″ | |
| Bowl Depth | 10″ | |
| Thickness | 16 gauge | |
| Finish | Soft Satin Finish | |
| Shipping Weight | 30 lbs’ |
GENERAL FEATURES
Fine quality sink bowl formed of 16 gauge BA 304
18/10 nickel bearing stainless steel.
DESIGN FEATURES
Bowl Depth: 10″
Finish: Soft Satin Finish
Underside: Sound absorbing pads and special paint
applied to dampen sound
Drain Opening: 3-1/2″
Corner Radius: R10mm (3/8″)

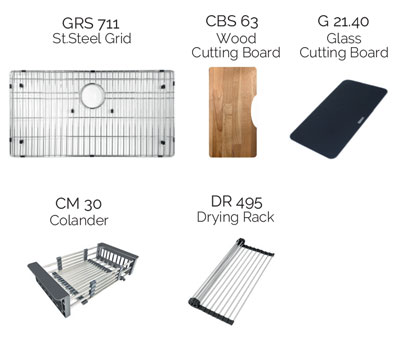

OPTIONAL ACCESSORIES

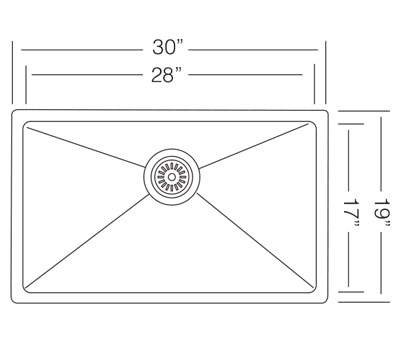

TECHNICAL DRAWINGS
INSTALLATION PROFILE DRAWINGS
* Template and countertop mounting clips are packed with every sink
SPECIFICATION SHEETS
