UK RS 482 60 40
UKINOX AQUA SERIES

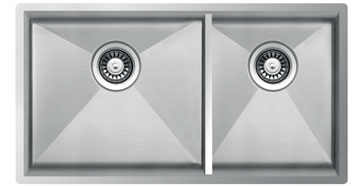

Contemporary Double Bowl Sinks R10
33″ 1-3/4 BOWL
UK RS 482 60 40
TECHNICAL DETAILS
| Sink Dimensions | L:33″ W:18“ | |
| Bowl Dimensions | L:15″ W:16″ L:13″ W:16″ | |
| Minimum Cabinet Size | 36″ | |
| Bowl Depth | 10″ | |
| Thickness | 16 gauge | |
| Finish | Soft Satin Finish | |
| Shipping Weight | 35 lbs’ |
GENERAL FEATURES
Fine quality sink bowl formed of 16 gauge BA 304
18/10 nickel bearing stainless steel.
DESIGN FEATURES
Bowl Depth: 10″ Bowl
R10 (3/8”) Radius Corners)
Finish: Soft Satin Finish
Underside: Sound absorbing pads and special paint
applied to dampen sound
Drain Opening: 3-1/2″

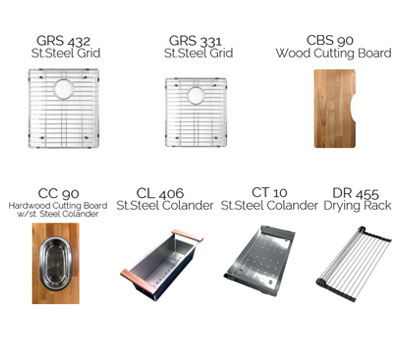

OPTIONAL ACCESSORIES

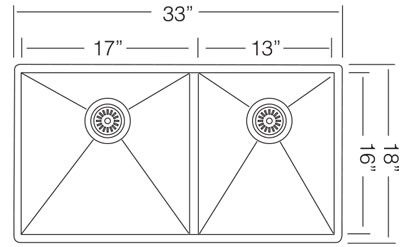

TECHNICAL DRAWINGS
INSTALLATION PROFILE DRAWINGS
