UK D 210
UKINOX BAR / PREP SINKS SERIES
Modern Single Bowl
9-1/2” PREP BOWL
9-1/2” x 17”
UK D 210
TECHNICAL DETAILS
| Sink Dimensions | L: 17″ W: 9-1/2″ | |
| Bowl Dimensions | L: 15-5/8″ W: 8-1/4″ | |
| Minimum Cabinet Size | 12″ | |
| Bowl Depth | 7″ | |
| Thickness | 18 gauge | |
| Finish | Soft Satin Finish | |
| Shipping Weight | 8 lbs’ |
GENERAL FEATURES
Fine quality sink bowl formed of 18 gauge BA 304
18/10 nickel bearing stainless steel.
DESIGN FEATURES
Bowl Depth: 7″
Finish: Soft Satin Finish
Underside: Sound absorbing pads and special paint applied to dampen sound
Drain Opening: 3-1/2″

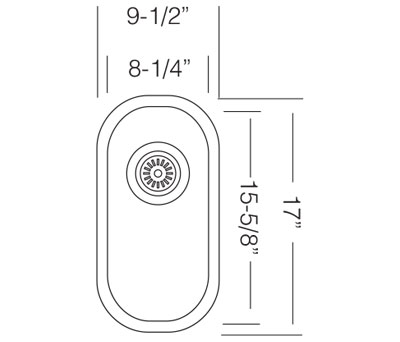

TECHNICAL DRAWINGS
INSTALLATION PROFILE DRAWINGS
SPECIFICATION SHEETS
