UK EDD 375 60 40
UKINOX LILAC SERIES

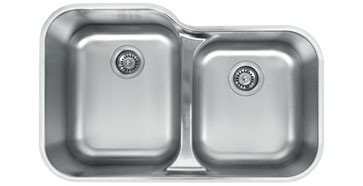

Classic Double Bowl Sinks With Low Divider
31-1/2″ 1-3/4 BOWL
UK EDD 375 60 40
TECHNICAL DETAILS

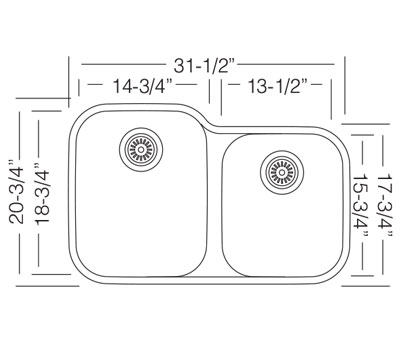

| Sink Dimensions | L: 31-1/2″ W: 20-3/4″ – 17-3/4″ | |
| Bowl Dimensions | L: 14-3/4″ – 13-1/2″ W: 18-3/4″ – 15-3/4″ | |
| Minimum Cabinet Size | 36″ | |
| Bowl Depth | 9″ | |
| Thickness | 18 gauge | |
| Finish | Soft Satin Finish | |
| Shipping Weight | 30 lbs’ |
GENERAL FEATURES
Fine quality sink bowls formed of 18 gauge BA 304
18/10 nickel bearing stainless steel.
DESIGN FEATURES
Bowl Depth: 9″
R10 (3/8”) Radius Corners)
Finish: Soft Satin Finish
Underside: Sound absorbing pads and special paint
applied to dampen sound
Drain Opening: 3-1/2″
OPTIONAL ACCESSORIES
TECHNICAL DRAWINGS
INSTALLATION PROFILE DRAWINGS
SPECIFICATION SHEETS
