UK D 360 50 50
UKINOX LIME SERIES

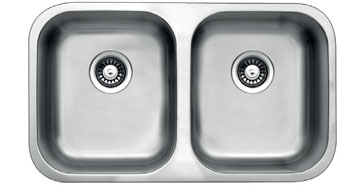

Classic Double Bowl Sinks
32″ EQUAL BOWL
UK D 360 50 50
TECHNICAL DETAILS
| Sink Dimensions | L: 32-1/4″ W: 18-7/8″ | |
| Bowl Dimensions | L: 14-1/4″ – 14-1/4″ W: 16-1/2″ – 16-1/2″ | |
| Minimum Cabinet Size | 36″ | |
| Bowl Depth | 9″ | |
| Thickness | 18 gauge | |
| Finish | Soft Satin Finish | |
| Shipping Weight | 30 lbs’ |
GENERAL FEATURES
Fine quality sink bowls formed of 18 gauge BA 304
18/10 nickel bearing stainless steel.
DESIGN FEATURES
Bowl Depth: 9″
R10 (3/8”) Radius Corners)
Finish: Soft Satin Finish
Underside: Sound absorbing pads and special paint
applied to dampen sound
Drain Opening: 3-1/2″

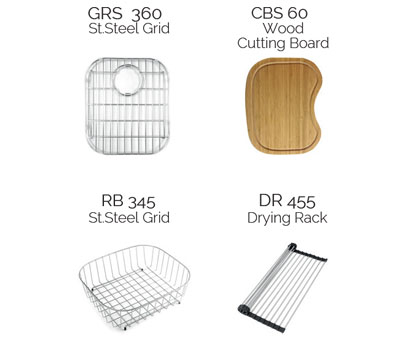

OPTIONAL ACCESSORIES

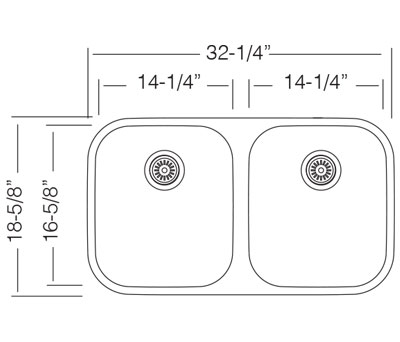

TECHNICAL DRAWINGS
INSTALLATION PROFILE DRAWINGS
SPECIFICATION SHEETS
