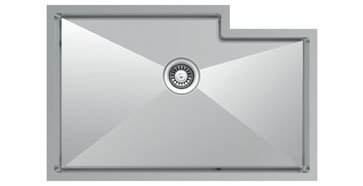

RX 815 – RX 815 R (NEW)
UKINOX MINT SERIES
Unique Large Single Bowl 18 GA
34″ LARGE SINGLE BOWL
RX 815 – RX 815 R (Reverse Model) (NEW)
TECHNICAL DETAILS
| Sink Dimensions | L: 34” W: 22″ – 19″ | |
| Bowl Dimensions | L: 21″-11” W: 20″ – 17″ | |
| Minimum Cabinet Size | 36″ | |
| Bowl Depth | 10″ | |
| Thickness | 18 gauge | |
| Finish | Soft Satin Finish | |
| Shipping Weight | 40 lbs’ |
GENERAL FEATURES
Fine quality sink bowls formed of 18 gauge BA 304
18/10 nickel bearing stainless steel.
DESIGN FEATURES
Bowl Depth: 10″
R10 (3/8”) Radius Corners)
Finish: Soft Satin Finish
Underside: Sound absorbing pads and special paint
applied to dampen sound
Drain Opening: 3-1/2″

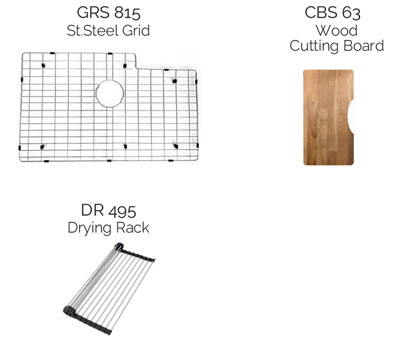

OPTIONAL ACCESSORIES

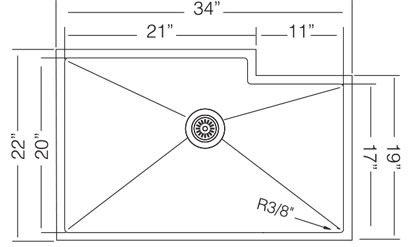

TECHNICAL DRAWINGS
INSTALLATION PROFILE DRAWINGS
SPECIFICATION SHEETS
