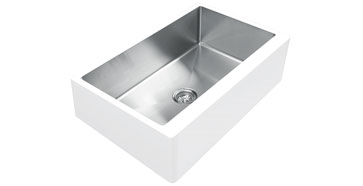

UK SC 842 (NEW)
UKINOX STONCHROME SERIES
Composite Stone Farmhouse Sink with Stainless Steel Bowl 16 GA
“Engineered to perfection. Extraordinary patented design of StonChrome™ brings the exceptional harmony of Stainless Steel & Composite Stone.”
33″ LARGE SINGLE BOWL
UK SC 842 (NEW)
TECHNICAL DETAILS
| Sink Dimensions | L: 33″ W: 21″ | |
| Bowl Dimensions | L: 30″ W: 17-3/8″ | |
| Minimum Cabinet Size | 36″ | |
| Bowl Depth | 10″ | |
| Thickness | 16 gauge | |
| Finish | Soft Satin Finish | |
| Shipping Weight | 50 lbs’ |
GENERAL FEATURES
Fine quality sink bowls formed of 16 gauge BA 304
18/10 nickel bearing stainless steel.
DESIGN FEATURES
Bowl Depth: 10″
R10 (3/8”) Radius Corners)
Finish: Soft Satin Finish
Underside: Sound absorbing pads and special paint
applied to dampen sound
Drain Opening: 3-1/2″

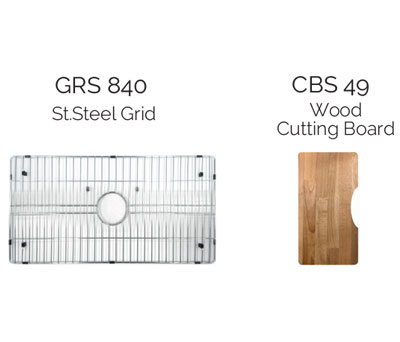

OPTIONAL ACCESSORIES

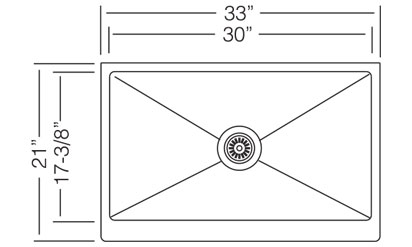

TECHNICAL DRAWINGS
INSTALLATION PROFILE DRAWINGS
SPECIFICATION SHEETS
