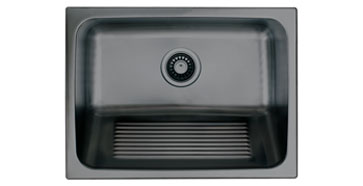

UK PDL 610 M
UKINOX TOUCH SERIES
Highly Resistant to Scratches and Fingertips.
Available in Platinum and Matte Black Colors 16 GA Rimless
24” UTILITY / LAUNDRY SINK
UK PDL 610 M – Matte Black (NEW)
TECHNICAL DETAILS
| Sink Dimensions | L: 24″ x W:18″ | |
| Bowl Dimensions | L: 13-3/8″ W: 15-3/4″ | |
| Minimum Cabinet Size | 27″ | |
| Bowl Depth | 10″ | |
| Thickness | 16 gauge | |
| Finish | Soft Satin Finish | |
| Shipping Weight | 20 lbs’ |
GENERAL FEATURES
Fine quality sink bowls formed of 16 gauge BA 304
18/10 nickel bearing stainless steel.
DESIGN FEATURES
Bowl Depth: 10″
R10 (3/8”) Radius Corners)
Finish: Soft Satin Finish
Underside: Sound absorbing pads and special paint
applied to dampen sound
Drain Opening: 3-1/2″

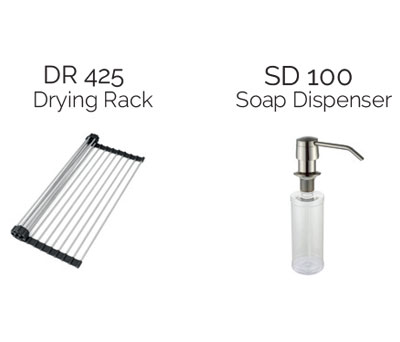

OPTIONAL ACCESSORIES

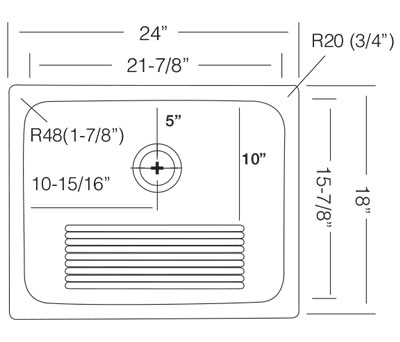

TECHNICAL DRAWINGS
INSTALLATION PROFILE DRAWINGS
SPECIFICATION SHEETS
