UKINOX BAR / PREP SINKS SERIES
9-1/2” PREP BOWL
UK R 200
TECHNICAL DETAILS
| Sink Dimensions | L: 17-3/8″ W: 9-1/2“ | |
| Bowl Dimensions |
L: 15-3/4″ W: 7-7/8″ |
|
| Minimum Cabinet Size | 12″ | |
| Bowl Depth | 6″ | |
| Thickness | 18 gauge | |
| Finish | Soft Satin Finish | |
| Shipping Weight | 8 lbs’ |
GENERAL FEATURES
Fine quality sink bowl formed of 18 gauge BA 304
18/10 nickel bearing stainless steel.
DESIGN FEATURES
Bowl Depth: 6″
Finish: Soft Satin Finish
Underside: Sound absorbing pads and special paint applied to dampen sound
Drain Opening: 3-1/2″

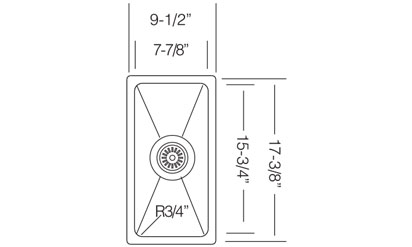

SINK DIMENSIONS (INCHES)

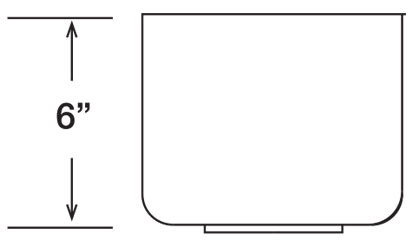

INSTALLATION PROFILE*
* Template and countertop mounting clips are packed with every sink
