UK RFU 601

UKINOX IRIS SERIES
Modern Single Bowl / Top-mount

24″ SINGLE BOWL

UK RFU 601

TECHNICAL DETAILS

Sink Dimensions L: 23-5/8″ W: 19-5/8″
Bowl Dimensions
L: 21-7/8″ W: 15-7/8″
Minimum Cabinet Size  27″
Bowl Depth 9″
Thickness 18 gauge
Finish
Shipping Weight 20 lbs’

GENERAL FEATURES
Fine quality sink bowls formed of 18 gauge BA 304
18/10 nickel bearing stainless steel.

DESIGN FEATURES
Bowl Depth: 9″
R10 (3/8”) Radius Corners)
Finish: Soft Satin Finish
Underside: Sound absorbing pads and special paint
applied to dampen sound
Drain Opening: 3-1/2″

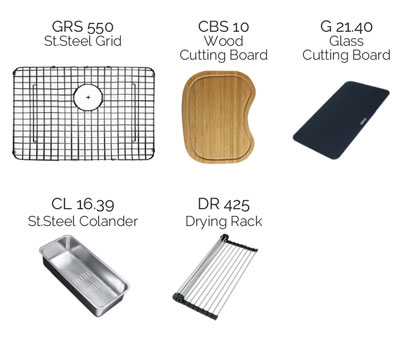

OPTIONAL ACCESSORIES

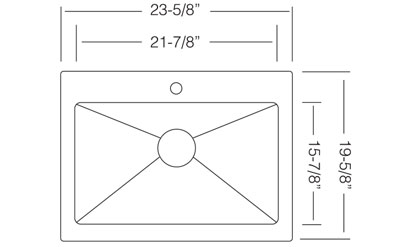

TECHNICAL DRAWINGS

INSTALLATION PROFILE DRAWINGS
